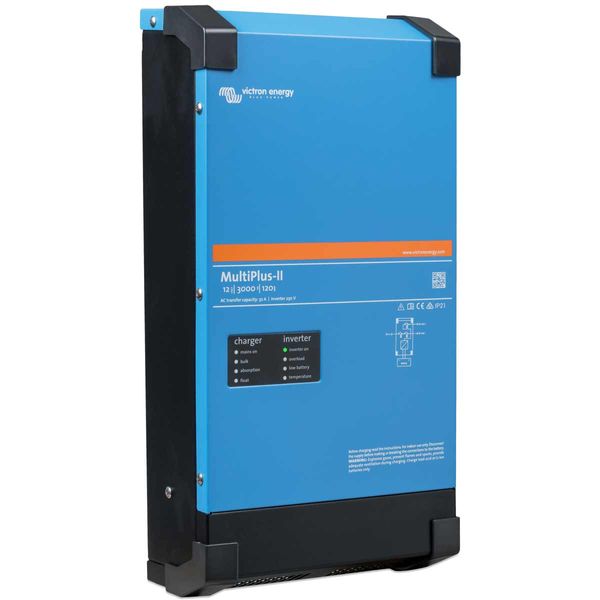

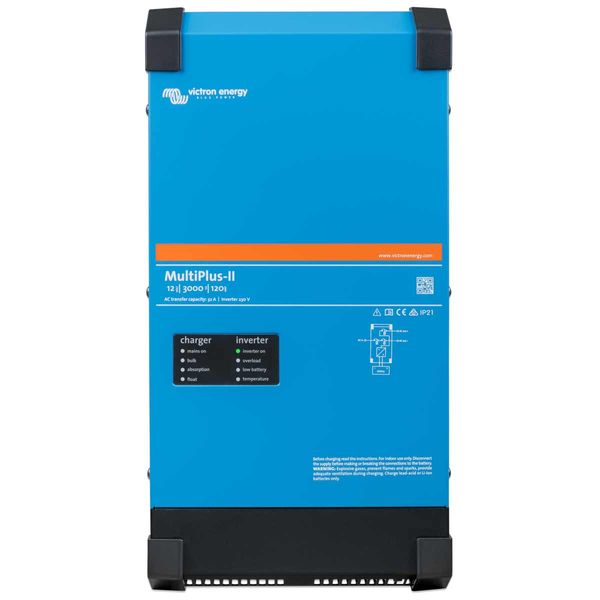

Victron MultiPlus-II Inverter/Charger (12V 230V / 3000VA / 120-32A)
Victron MultiPlus-II Inverter/Charger (12V 230V / 3000VA / 120-32A)
SKU:Victron MultiPlus-II 3000VA
Regular price
£1,420.00 GBP
Regular price
Sale price
£1,420.00 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Victron MultiPlus-II inverter charger optimizes self-consumption and prevents overload of limited AC sources with PowerAssist. It combines the features of the MultiPlus and MultiGrid, with an external current transformer option and built-in anti-islanding. Perfect for efficient and reliable power management.
Key Features
PowerAssist
PowerControl
ESS: Energy Storage Systems
Uninterrupted AC power (UPS)
Remote Monitoring & Control
MultiPlus & MultiGrid Functions
| Brand | Victron |
| Charger Short Circuit Protection | Yes |
| Frequency Description | Charger Input: 45-65Hz, Inverter Output: 50Hz ± 0.1% |
| Voltage Description | Charger Input: 187-265V AC, Inverter Input: 9.5-17V DC, Inverter Output: 230V AC ±2% |
| Amps Description | Charger: 120A / Transfer Switch: 32A |
| Rating | IP22 |
| Height Description | 546mm |
| Width | 268mm |
| Depth | 147mm |
| Weight | 19kg |
| Material | Steel (blue RAL 5012) |
| Wattage | Output @ 25°C: 2400W, Output @ 40°C: 2200W, Output @ 65°C: 1700W |
| Approvals | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2, EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3. Meets UPS & Solar Standards |
| Operating Temperature | -40°C to +65°C |
| Style | Combined Inverters & Battery Chargers |
