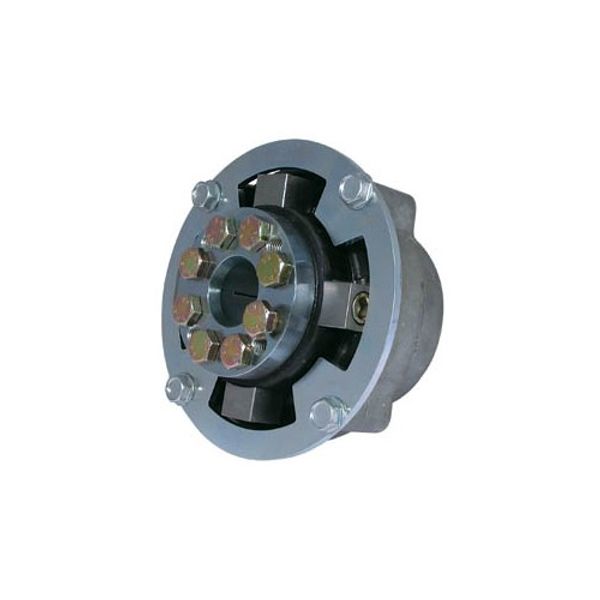

Centaflex M-160 Coupling 1-1/2" + Failsafe

Effectively reduce shaft-transmitted noise and vibrations, while also cushioning torsional stress and shock loads.

The Centaflex M-160 Coupling 1-1/2" + Failsafe features a highly elastic element that can accommodate shaft misalignment and movement, providing up to 2° angular misalignment capacity and 15° torsional flexibility.

This design absorbs torsional shocks and stress without excessive deformation, allowing for the transfer of propeller thrust to the gearbox thrust bearing.

With torque capacities ranging from 175Nm to 500Nm, this coupling is suitable for engines ranging from 10HP to 100HP at 1500rpm.

The pack of nuts for the prop shaft is included, but please note that the gearbox stud and nut must be purchased separately.

Specifications:
