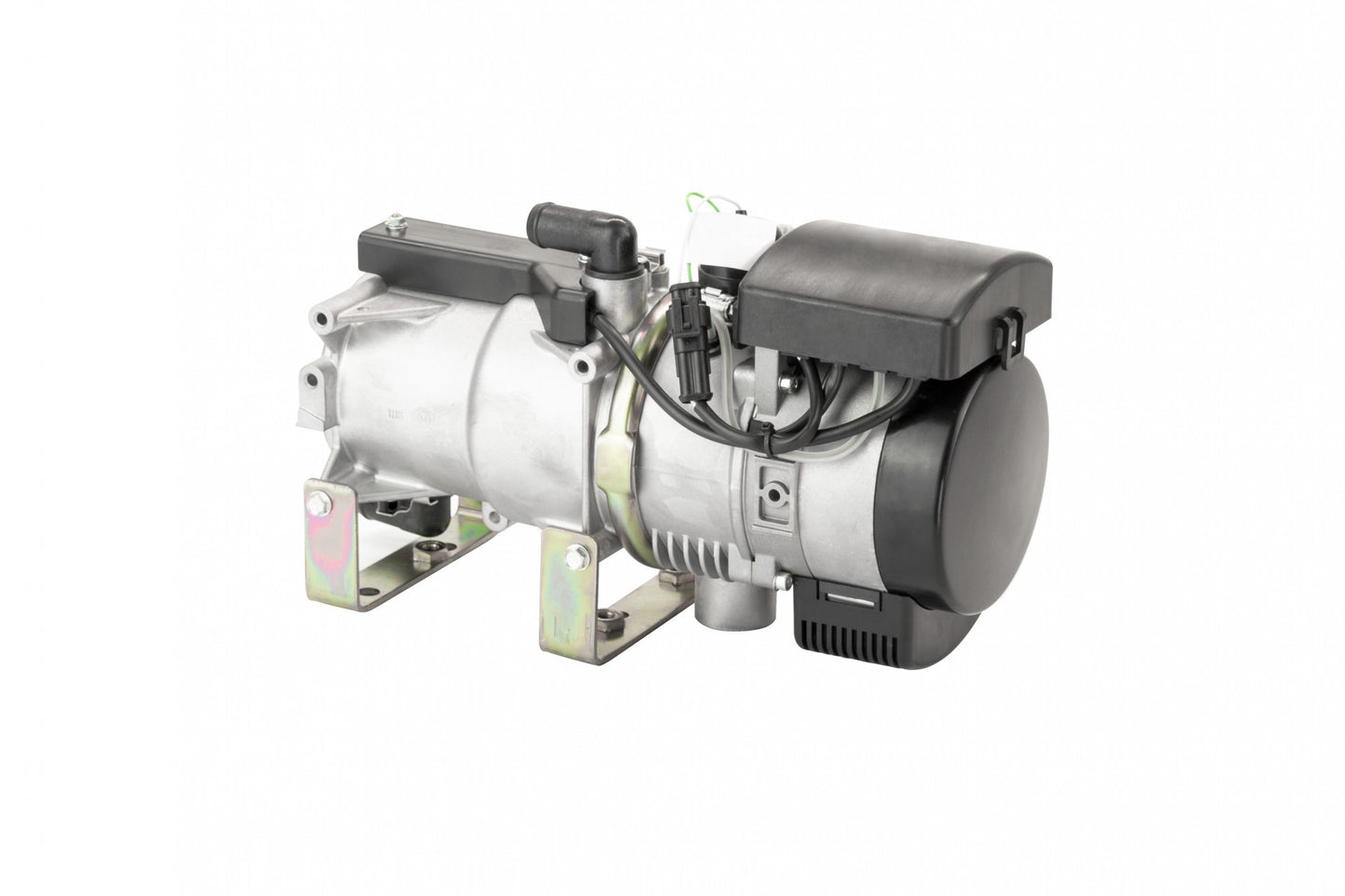

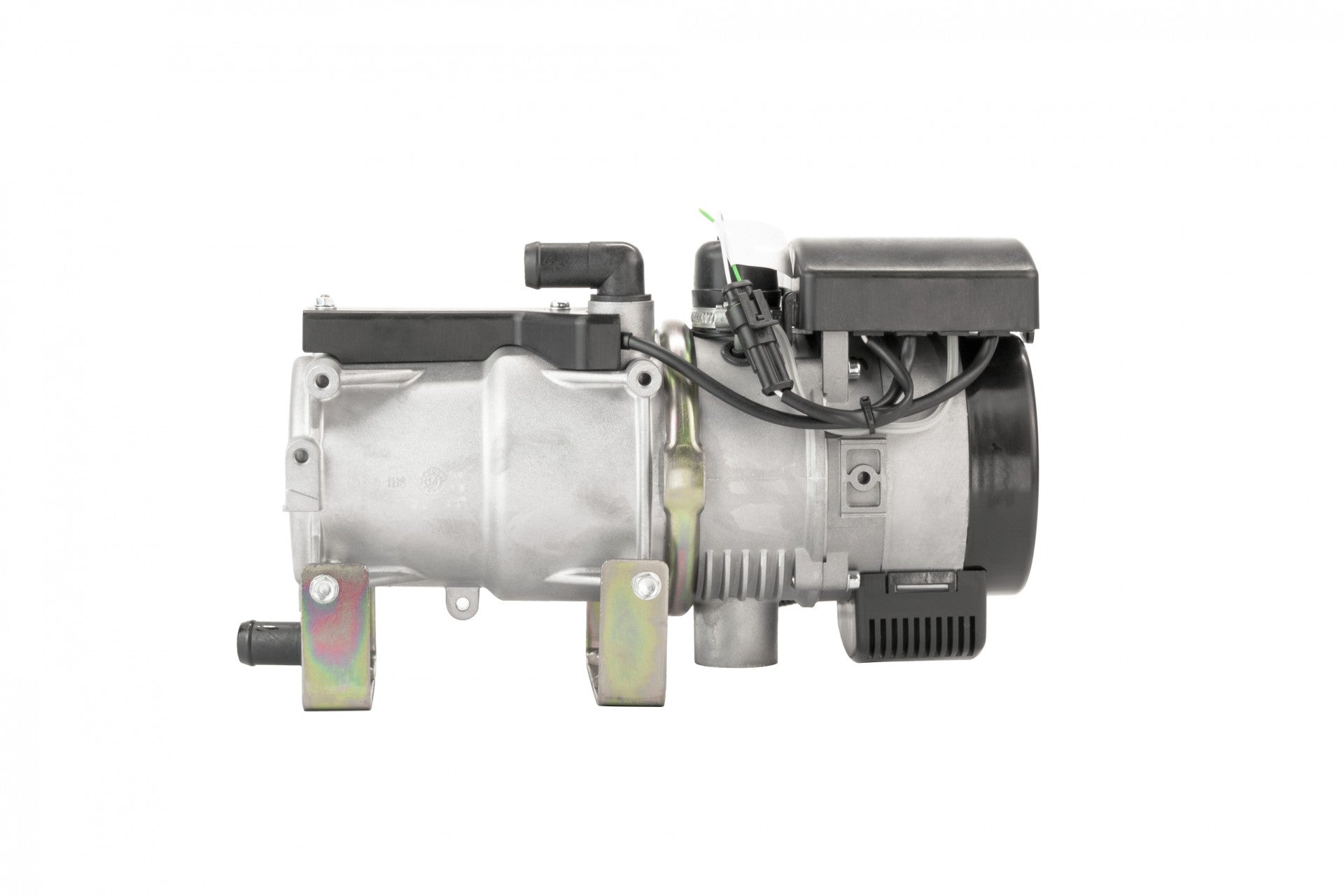

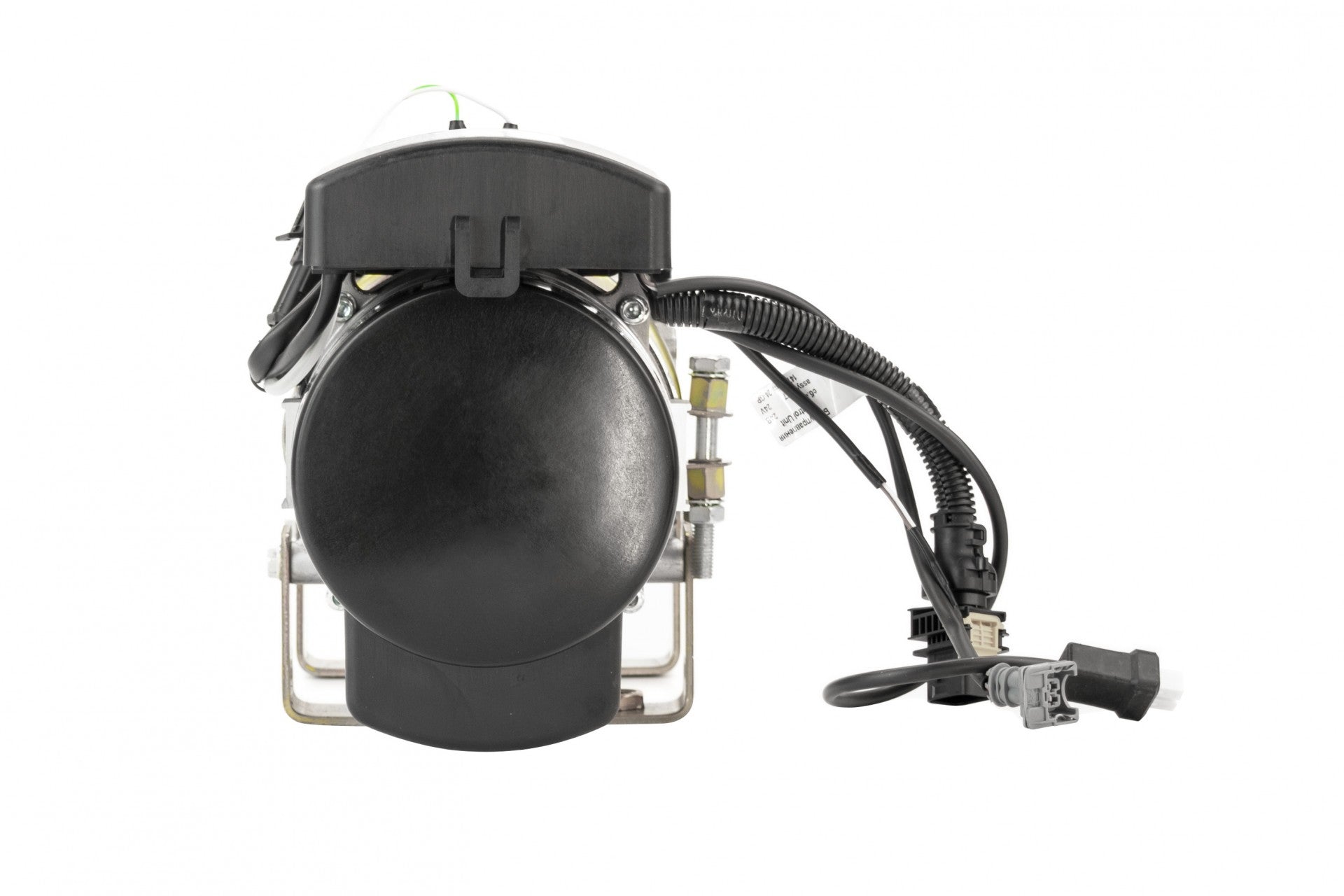

Autoterm Flow 14TC-MINI - Diesel water heater - 14kW - 12v or 24v

Autoterm Flow 14TC-MINI, a powerful 14kW diesel water heater that operates independently from the engine. Perfect for keeping you warm and comfortable on your next adventure.

The Autoterm Flow 14TC-MINI is a powerful diesel water heater that comes in both 12V and 24V DC versions. With a 14kW output, it efficiently heats water for various applications. Perfect for those in need of reliable and versatile heating solutions.

The AUTOTERM Flow 14TC-MINI is a powerful diesel water heater, delivering 14kW of heating power and compatible with both 12v and 24v systems. Equipped with a full installation kit, it is ideal for small radiator systems or boilers up to 70 litres. Stay warm and comfortable in any environment with this reliable and efficient heater.

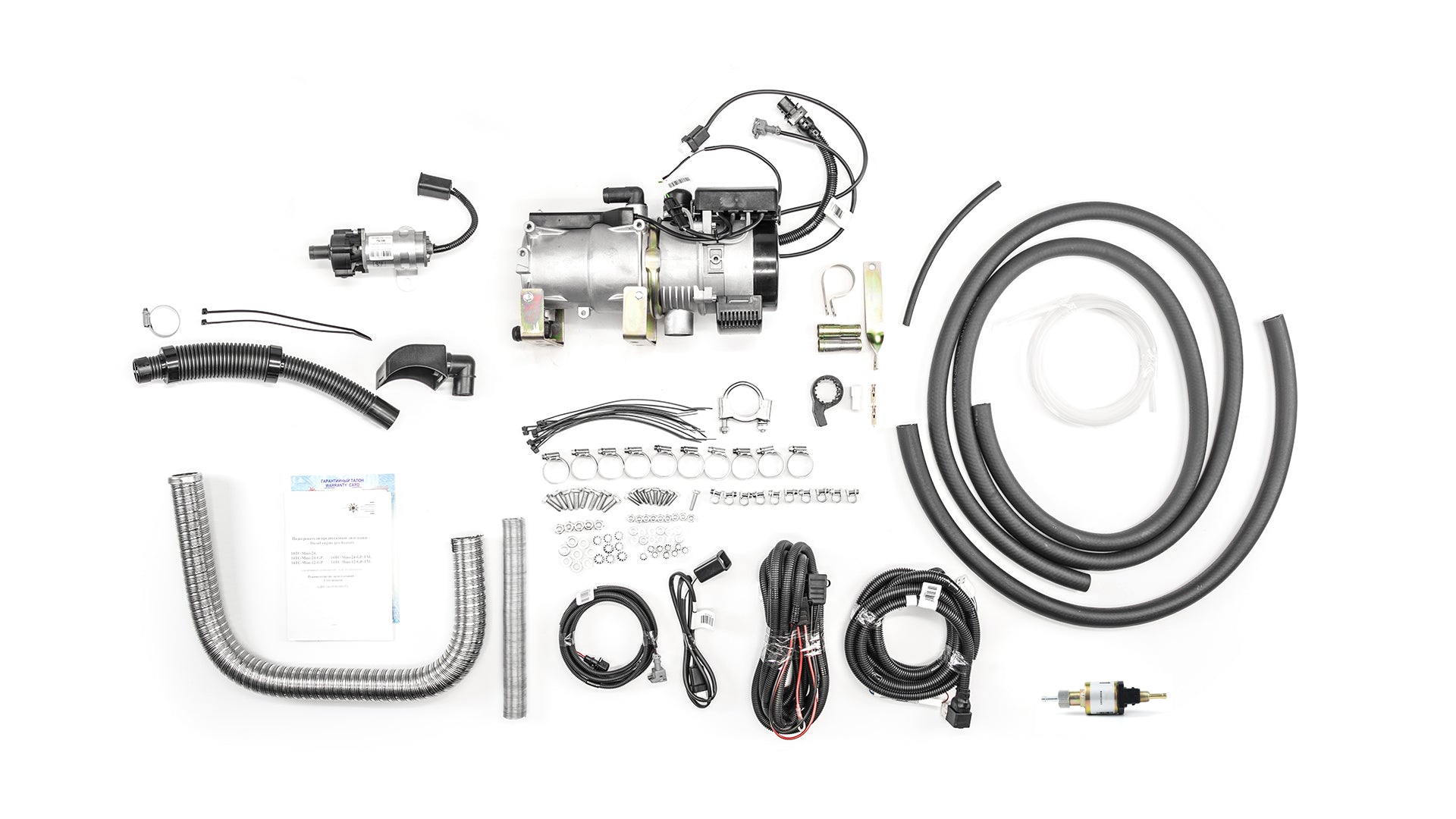

Whats in the box?

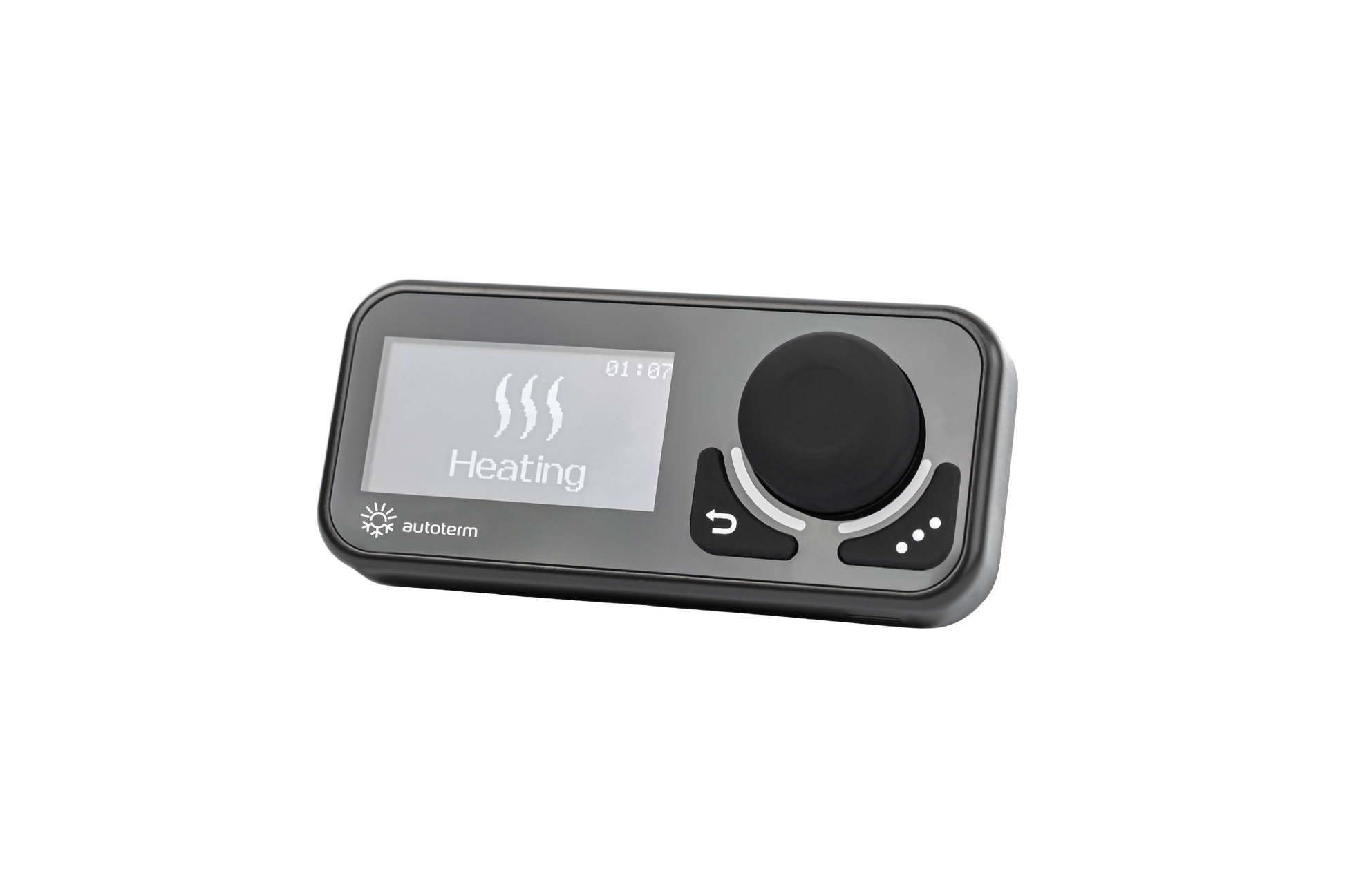

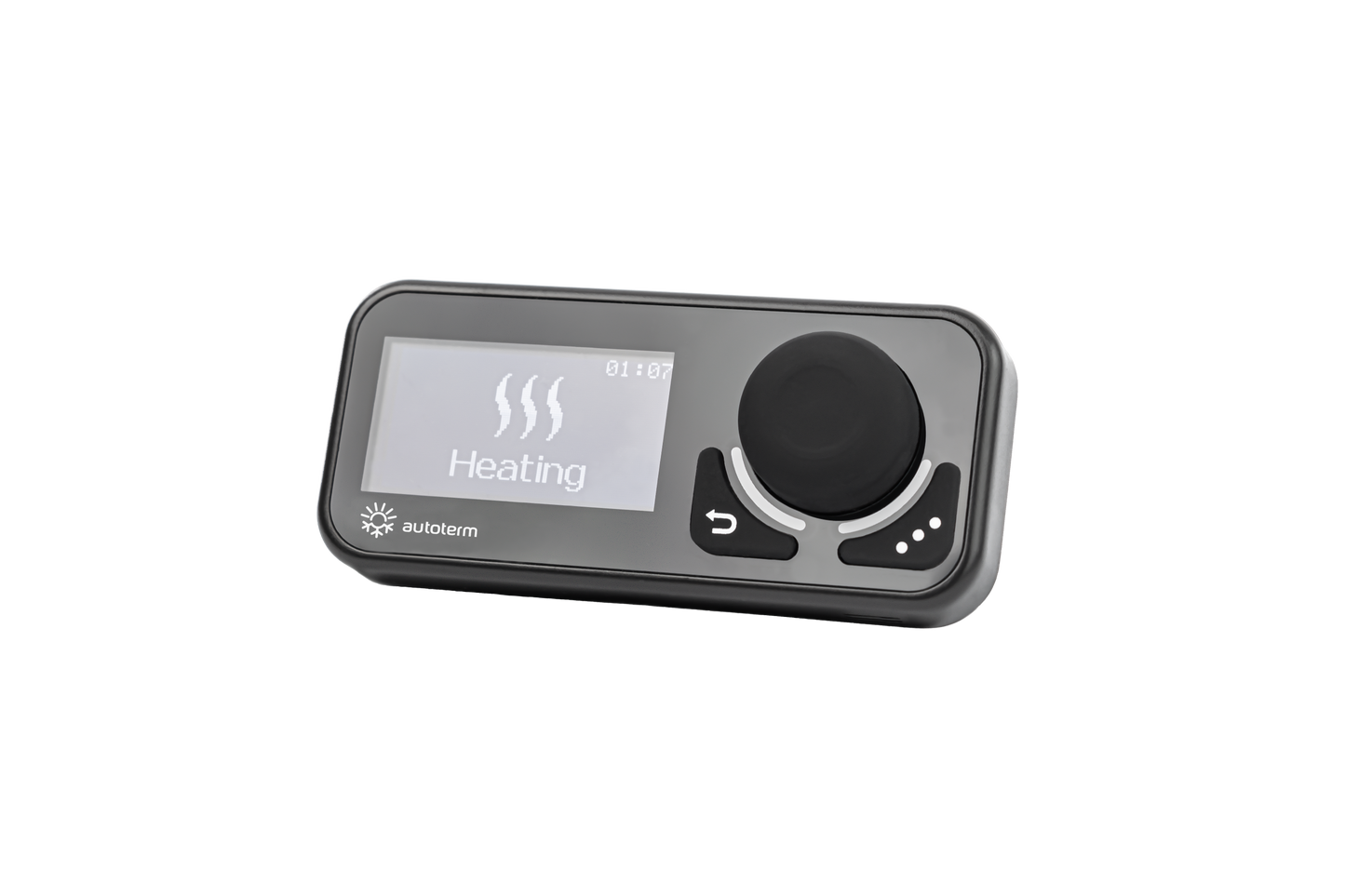

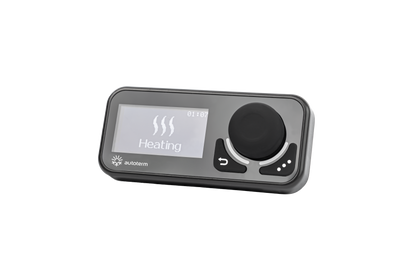

Comfort Controller with built in thermostat

2.25m marine exhaust and skin fitting

Fuel tank dip tube

Fuel pump Thomas magnete

Rubber fuel clamp

Power cable 12v/24v

Controller cable

Exhaust pipe 1m

Rubber hose 2m

Cover for hose

Electric water pump

Cable for water pump

Nylon fuel line 6m



Specifications

AUTOTERM Flow 14D
Technical characteristics	12V 24V
Heating medium	Coolant, antifreeze coolant
Optimal liquid/coolant volume	25 - 30 L
Coolant liquid flow rate at 0 bar pressure in system	2000 l/h
Coolant liquid flow rate at 0.18 bar pressure in system	1300 l/h
Heating power	14.5 kW
Power consumption	46 W - 124 W 46 W - 113 W
Max. work altitude (MASL)	1000 m
Fuel	Diesel - EN590
Fuel consumption	0.5 - 1.2 l/h 0.5 - 1.2 l/h
Coolant inlet / outlet diameter	OD - Ø 20 mm
Noise level	80 dB
Control mode	Manual, standard remote control
Compatible control panels	OLED Control panel, Comfort Control
Weight of the heater	5.7 kg
Weight of the set	16 kg
Heater dimensions	340x160x206 mm
Package dimensions	88x33x30 cm
